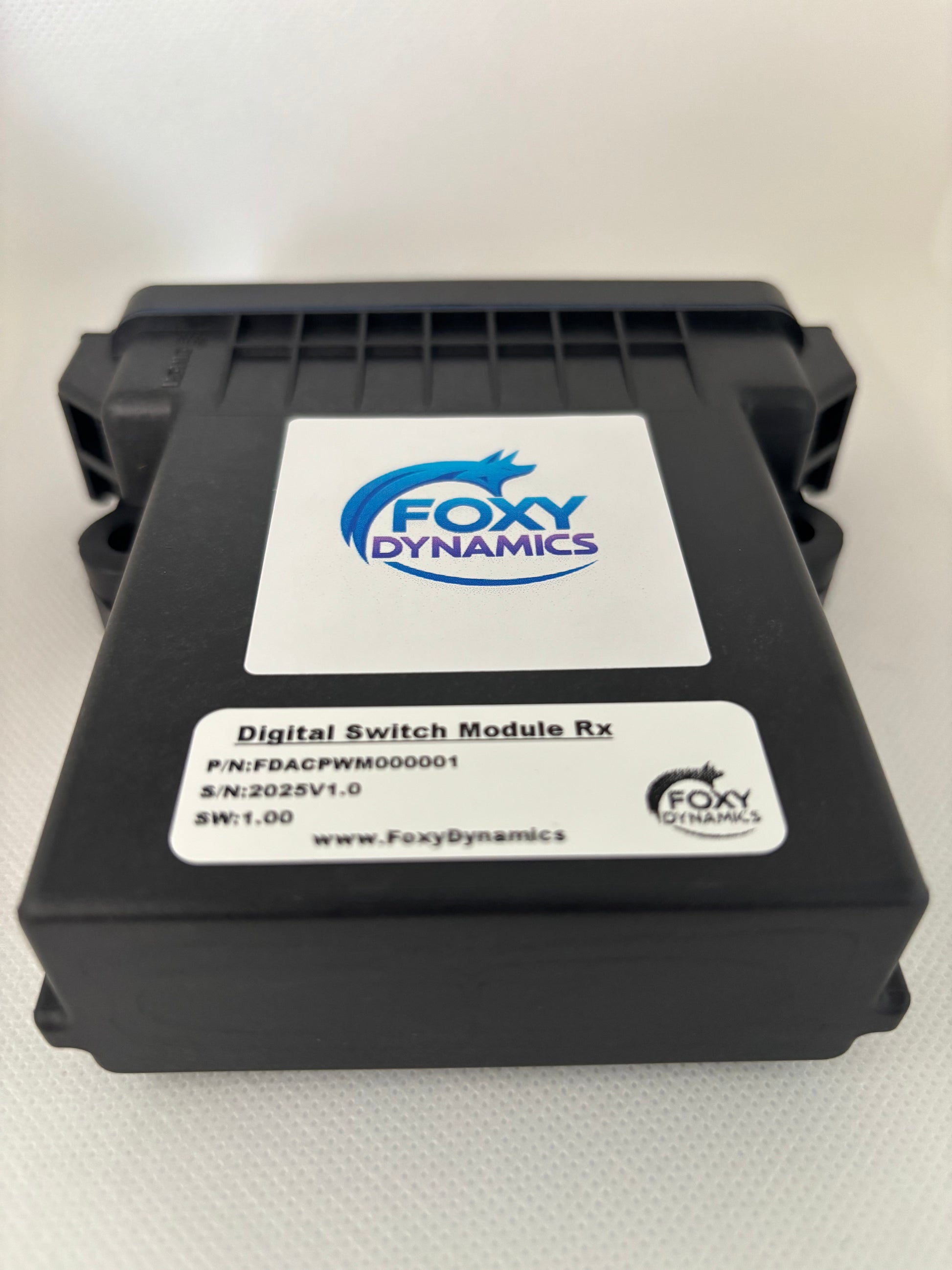

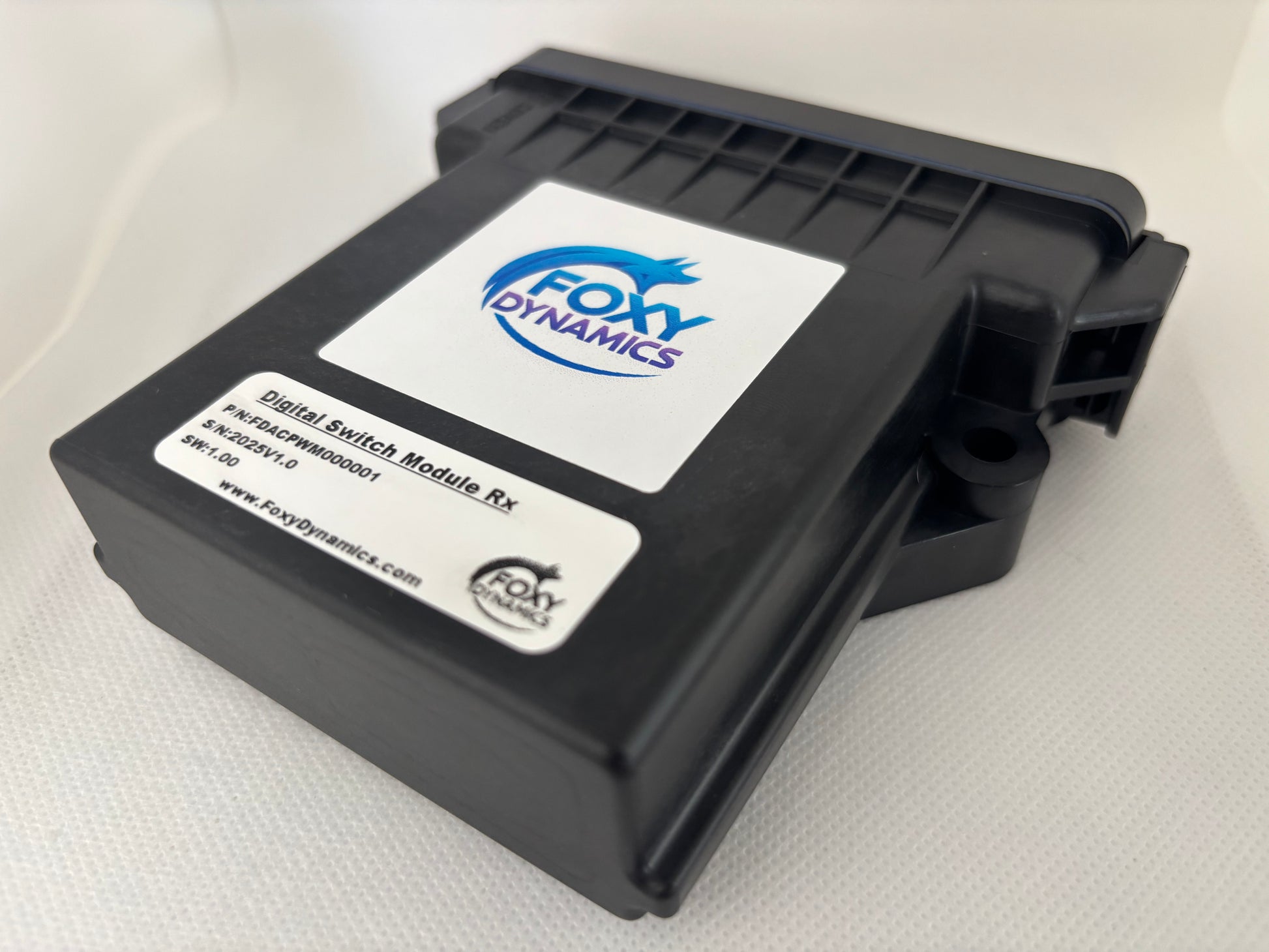

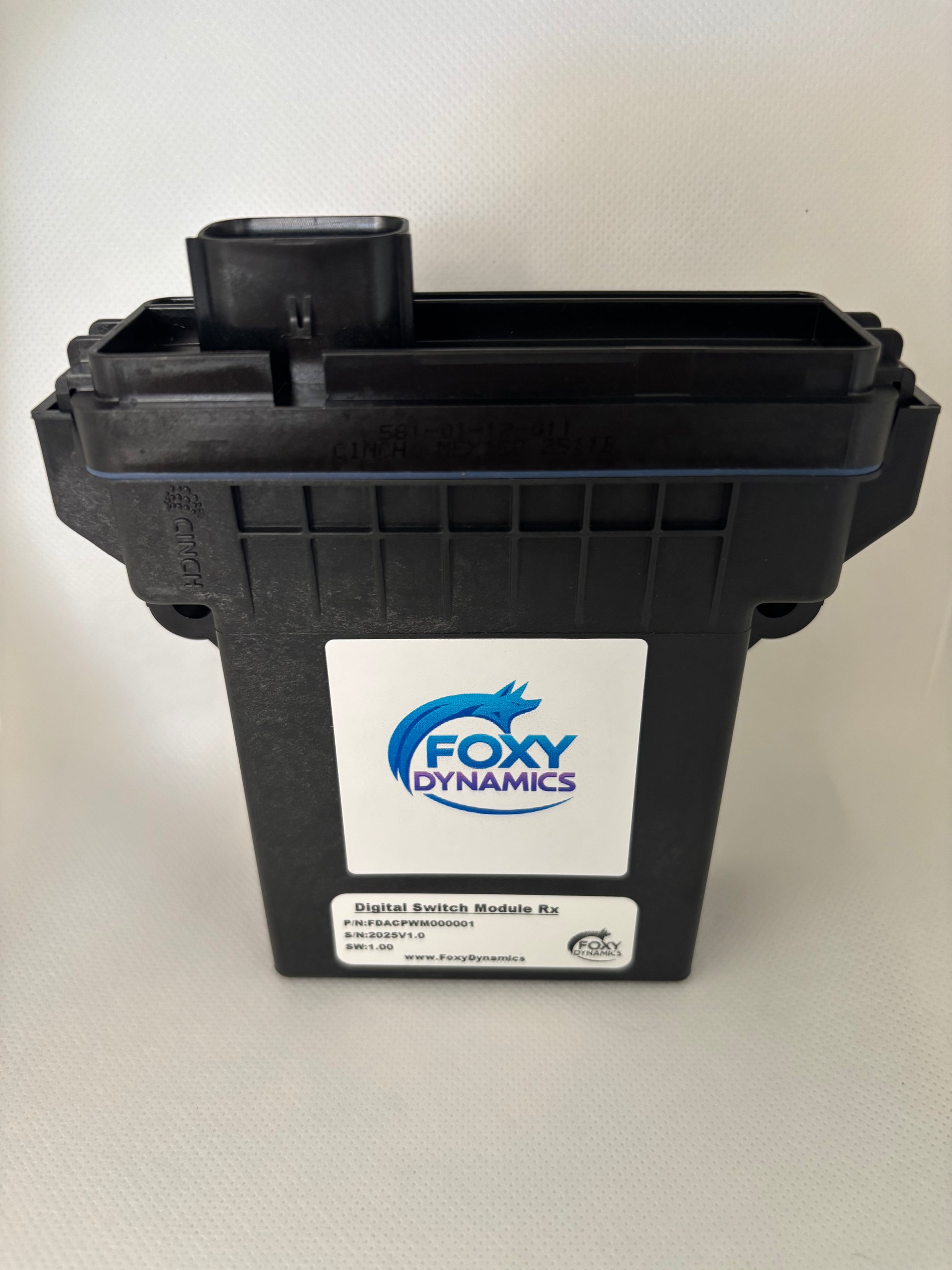

Digital High-Side Switch Rx – CAN / NMEA 2000 Controlled

The Foxy Dynamics Receive Module offers robust, solid-state switching, delivering intelligent, network-controlled power distribution for 12VDC systems. Designed for seamless integration into CAN or NMEA 2000 networks, each channel can be independently controlled via user-defined messages, offering flexible and reliable switching for demanding automotive, marine, off-road, and industrial applications.

Key Features:

• 12VDC nominal system, up to 20A per channel
• Controlled via CAN 2.0 or NMEA 2000 network commands
• Each channel has:
  • Individually assigned address
  • Optional per-channel fuse protection (up to 20A)
• High-side switching design for simplified wiring and load control
• Short-circuit, over-temperature, and over-current protection
• Mating connector; Molex150

• Sealed, rugged enclosure for harsh environments

This smart switching module is ideal for replacing mechanical relays and simplifying complex wiring harnesses, all while providing precise digital control from your existing network infrastructure. Designed to work with existing CAN messages or Foxy Dynamics' Rx Module.
