Analog to CAN / NMEA 2000 (Current) Module

Easily integrate traditional analog sensors into modern CAN bus systems with our Analog-to-CAN Sensor Interface Module. Designed for rugged environments across automotive, marine, off-road, and agriculture/construction applications, this compact module reads analog input—0-20mA or 4-20mA signals—and transmits the data over a customizable CAN 2.0 or NMEA 2000 network. Product is customizable; please contact Foxy Dynamics.

Key Features:

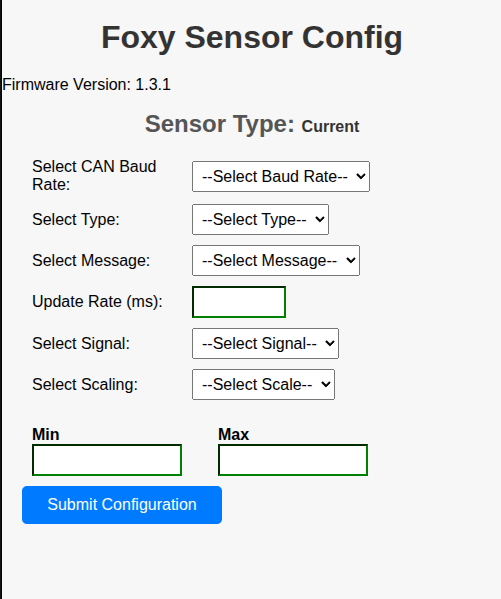

• Configurable using an access point webpage.
• User-configurable CAN message IDs and scaling
• CAN Out connector; M12-5pin A-Key
• Signal in connector; M12-6pin A-Key
• Built for 12VDC systems
• 0-20mA or 4-20mA DC Input, 12bit resolution
• Robust, sealed and potted enclosure for harsh environments

• Ideal for retrofitting legacy sensors into CAN-based architectures

Seamless, reliable, and engineered for field performance—this module bridges the gap between analog sensing and modern digital control systems.
