LiDaR Fuel Sender to NMEA 2000® PWM Module

Easily integrate the Holley^® Easy Level^™ fuel sensor into modern NMEA 2000^® bus systems with our LiDaR Fuel Sensor to NMEA 2000^® Interface Module. Designed for rugged marine environments, this compact module reads a digital input—PWM Signals—and transmits the data over NMEA 2000^® network. Product is customizable; please contact Foxy Dynamics.

Key Features:

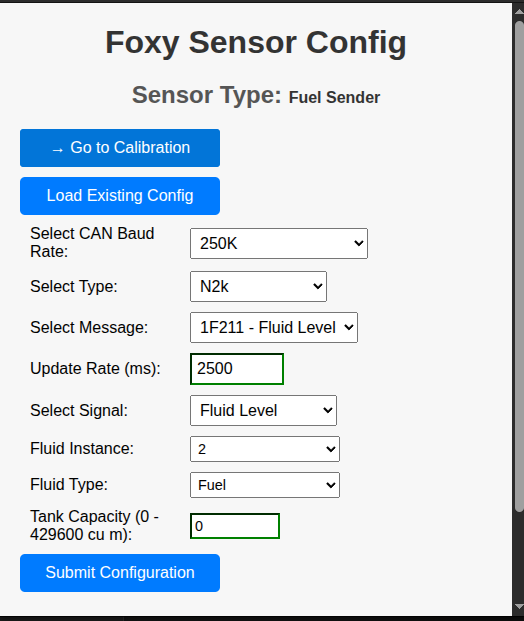

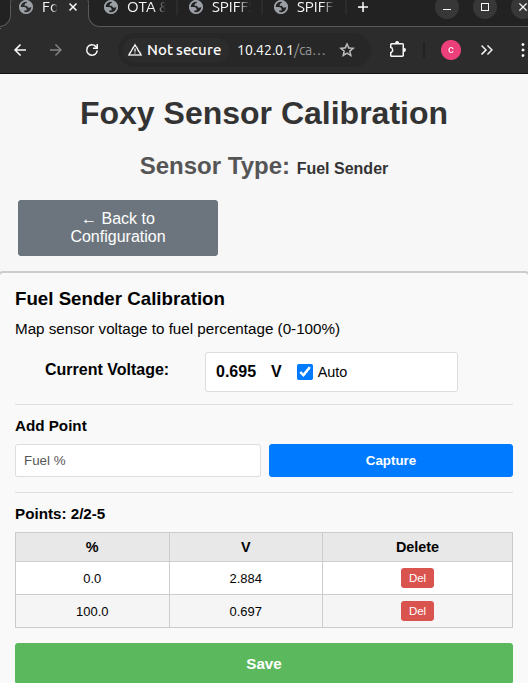

• Configurable using an access point webpage.
• User-configurable N2k Instance IDs
• N2k Out connector; M12-5pin A-Key
• Signal in connector; M12-6pin A-Key
• Built for 12VDC systems
• 3.3VDC @ up to 1500Hz Input, 12bit resolution
• Robust, sealed and potted enclosure for harsh environments

• Ideal for retrofitting LiDaR sensors into marine vessels

Seamless, reliable, and engineered for field performance—this module bridges the gap between analog sensing and modern digital control systems.

Datasheet

User Guide

NMEA 2000^® is a registered trademark of National Marine Electronics Association.

Holley^® and Easy Level^™ are registered trademarks of Holley Performance Products, Inc.
